Wireless Torque Controller w/ 10" Touch Panel
Wireless Torque Controller
w/ 10" Touch Panel
● With a patented control algorithm and device, capable of precisely regulating the output torque of both continuous and discontinuous air-driven torque tools, including air impact wrenches, air ratchet wrenches, air oil pulse wrenches, and geared torque multipliers, irrespective of the tool brand and its inherent mechanism. This system boasts proven exceptional control accuracy and durability.
● The programmable feature enables precise bolting sequence control when utilizing tagged or sensing bolts, enhancing operational efficiency and accuracy.
● Addresses challenges related to torque loss stemming from fluctuations in joint hardness, temperature elevation of hydraulic fluid in pulse tools, or variations in tool handling posture during continuous operation. Automatically compensates for dynamic torque loss within its designated working torque range.
Optional Accessories:
WTT-WL-24V

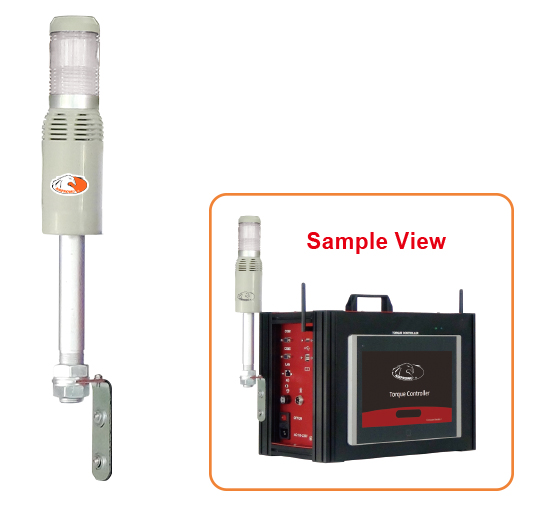

24V Tri-color Light Pole
w/ Buzzer
Wireless Torque Controller
w/ 10" Touch Panel
|

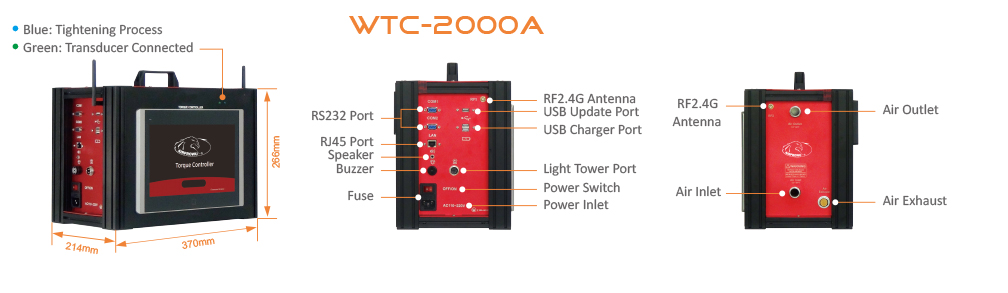

Model No. |
WTC-2000A |
|
|
Max. Flow Rate |
2000 L/min |
|
|
Touch Panel Size |
10" Touch Panel |
|
|
Power Source |
AC 100V~240V /2A |
|
|
Connection Port |
USB |
1 |
|
RS232 |
2 |
|
|
RJ45 |
1 |
|
|
Wireless Antenna |
RF2.4G |
2 |
|
BT Antenna |
● |
|
|
Speaker |
1 |
|
|
Light Tower Output Port |
1 |
|
|
Buzzer |
80dB |
|
|
USB Charger Port |
2 |
|
|
Flow Rate Detection |
● |
|
|
Automatic Flow rate Control |
● |
|
|
Operation Mode |
Oil Pulse Wrench |
● |
|
Air Impact Wrench |
● |
|
|
Manual Torque Wrench |
● |
|
|
Air Torque Multiplier |
● |
|
|
Job Sequence |
● |
|
|
Control Accuracy |
Static Torque (%) |
±1 ~ ±5% |
|
Dynamic Torque (%) |
±5 ~ ±15% |
|
|
Thread Size |
Inlet |
1/2" NPT |
|
Outlet |
1/2" NPT |
|
|
System Parameter |
● |
|
|
Static Torque |
● |
|
|
Dynamic Torque |
● |
|
|
Multi-Stage Training |
X |
|
|
Job Sequence ( Dynamic & Stastic ) |
Dynamic |
|
|
Tyre Assembly System |
X |
|
|
Display |
HMI on-board |
|
|
Job Data |
Total number of bolts |
|
|
Cloud |
FTB |
|
|
Job Data Export |
All Data in Excel Format |
|
|
Job Data Memory |
150K |
|
|
Torque Curve Display |
X |
|
|
Dimensions |
Length(L) |
370mm |
|
Width(W) |
214mm |
|
|
High(H) |
266mm |
|
|
Net Weight |
10.5 ±0.5 kg |
|
Warranty Period
● Torque Controller: 12 months from purchase date.
● Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty does not cover part failure due to broken / missing seal label, misuse, modification, negligence, abuse or normal wear and tear.
Wireless Torque Controller
w/ 10" Touch Panel
● Signal Source: Torque Transducer, Air Pressure Sensor, Sensing Bolt or Tagged Bolt.
● Torque Revise: Deviation & Replacement.
● Target Torque Setting: Any target torque value can be selected and inputted within the calibrated torque range.
● Working air pressure : Automatic adjusted to correspondent target torque (Inlet Air Pressure between 100~120psi is recommended).
● Air flow rate: Only WTC-2000A/ WTC-2000B equipped with digital flow meter. Turn the tool air flow regulator to maximum, the system will regulate the
proper flow rate to correspondent target torque automatically.
● Bolting in stages: Preset the bolting stages and percentage of target torque for each stage from 1 to 4 stages as required.
The system will regulate the air pressure and flow rate correspondently.
● Number of bolts: Preset the number of bolts to be fastened. Only when all bolts of each stage fastened, the system will switch to
next stage and regulate the air pressure and flow rate correspondently and automatically.
● Torque Compensation: The system will compensate the torque loss that may be caused by the variation in the bolted joint
hardness or the rise in temperature of hydraulic fluid of pulse wrench or the posture of operator to hold the tool during the
process automatically within its allowable working air pressure range.
● Remote monitoring: Via Internet or Ethernet with VNC to monitor data on cell phone, tablet and PC, or to do parameter setting
on the torque controller.
● Operation Management: Constraints Via permission setting to access the operable functions such as logging the operator’s ID and duration of operation.
● Torque Control Accuracy: ±5%~±15%.
● Job Sequence: Support 10 sets of torque tool preset available for bolting sequentially.
● Production Record: Traceable through USB, Ethernet or exported to the cloud server through wired or wireless connections.
Wireless Torque Controller
w/ 10" Touch Panel
● Pulse Wrench: Transducer mode (Work with transducer) , Pressure mode (Without transducer), Track mode (For soft joint).
● Torque wrench: Torque, Torque + Angle, Click wrench track mode, Click wrench inspection mode.
● Impact Wrench: Transducer mode (Work with transducer), Pressure mode (Work without transducer), Track mode (For soft joint).
● Job sequence
● Geared Wrench ( Opt. mode)
● Torque Tester ( Opt. mode)
● Torque multiplier ( Opt. mode)
