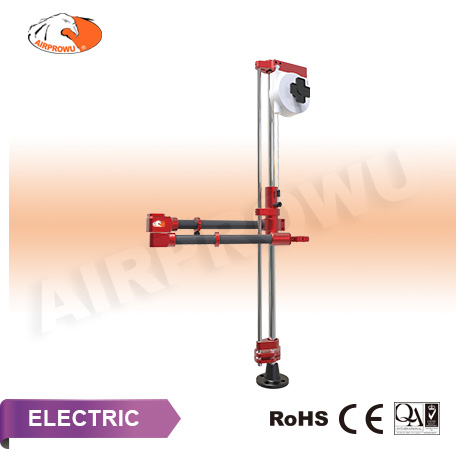

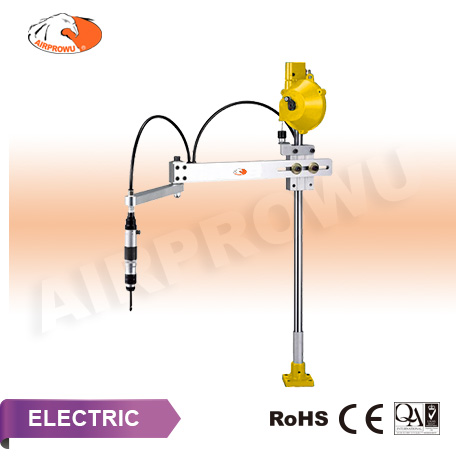

Torque Reaction Arm w/ Housing spring balancer
Torque Reaction Arm
w/ Housing spring balancer
● 360-degree full-range rotation of the horizontal arm without blind spots.
● Some models are equipped with a balancer for automatic return to the original position,
making it more time-saving and effortless for the user to operate.
● Easy assembly, simple disassembly.
● According to user needs, there are multiple model options to choose from.
Torque Reaction Arm
w/ Housing spring balancer
|
Model No. |
Max.Torque |

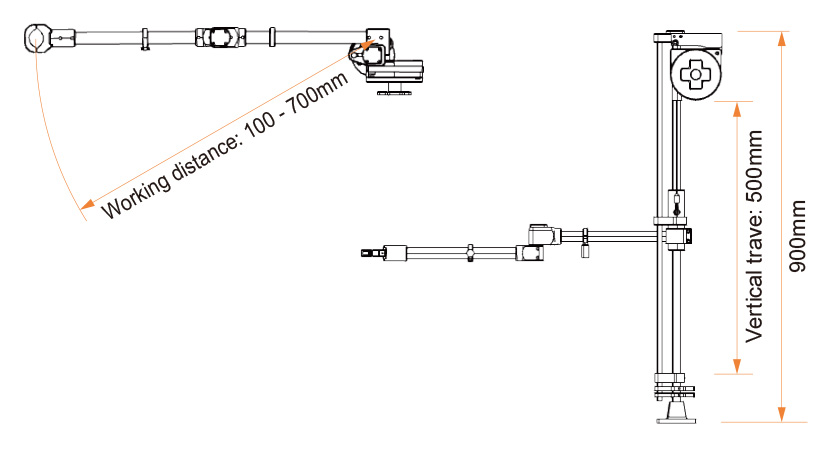

Vertical Travel |
Dimensions |
Working Distance |
Dameter |
Compatibility Series |
|||||
|
最大扭力 |
垂直行程 |
支臂架尺寸 |
工作範圍 |
起子直徑範圍 |
適配系列 |
||||||
|
kgf-cm |
Lbf-in |
N-m |
Inch |
mm |
Inch |
mm |
mm |
mm |
- |
||
|
EA-0008 |
152.95 |
132.75 |
15 |
19.68 |
500 |
35.43 |
900 |
100 - 700 |
Selecting different specifications |
Selecting different clamp |
|

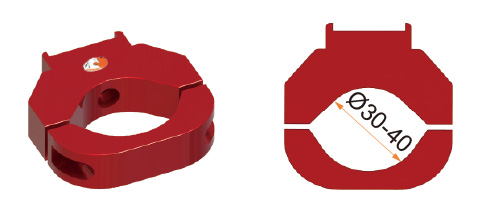

EA-0008CL
Clamp
● Applicable screwdriver diameter range: Ø30 - 40mm
EA-0008CM
Clamp
● Applicable screwdriver diameter range: Ø27 - 36mm
EA-MB001
Mounting Bracket (optional)
