Shut Off Air Open End Wrenches
SA-OW06-08S Fastening & Reversing Type
Shut Off Air Open End Wrenches
● Torque Range: 0.5~2.0 Nm
● Free Speed: 230 RPM
SA-OW06-08S Fastening & Reversing Type
Shut Off Air Open End Wrenches
● B Series: Non-Reversible Type/ S Series: Fastening & Reversing Type
|
Model No. |
Torque |
Free |
Socket Size(G) |
Head Size |
Net |

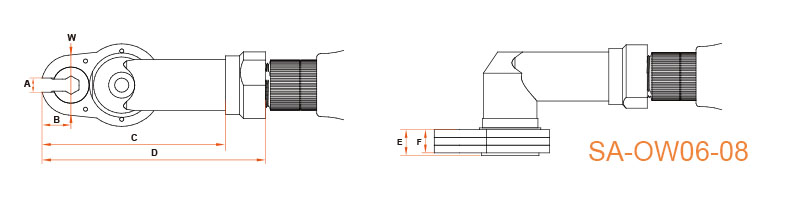

Dimensions |
|||||
|
扭力範圍 |
無負載轉速 |
套筒尺寸 |
開口外座尺寸 |
重量 |
A |
B |
C |
D |
E |
F |
|
|
Nm |
R.P.M |
mm |
mm |
kg |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
SA-OW06-08B |
0.5 - 2.0 |
230 |
8 |
30 |
1.16 |
13.1 |
15.00 |
91.00 |
111.00 |
13.6 |
12.1 |
|
SA-OW06-08S |
0.5 - 2.0 |
230 |
8 |
30 |
1.16 |
13.1 |
15.00 |
91.00 |
111.00 |
13.6 |
12.1 |
