ADT-00051

Quick Change Ratchet Crimper For Cord End Terminal

DIE:

Material: AISI-4140
Procedure: Precision and Wax-Lost Casting
Treatment: Finished With Heat Treatment

Surface Treatment: Zinc Phosphate
Quick Change Ratchet Crimper:
Material:
Body: Carbon Steel
Handle: PP+TPR(PAHS Approved)

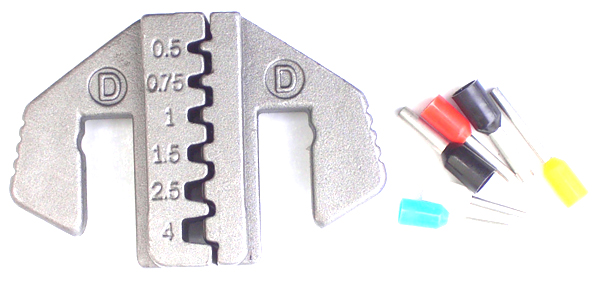

D DIE
Cord End Terminal
● AWG 22/20/18/16/14/12
●0.5/0.75/1.0/1.5/2.5/4.0 mm2

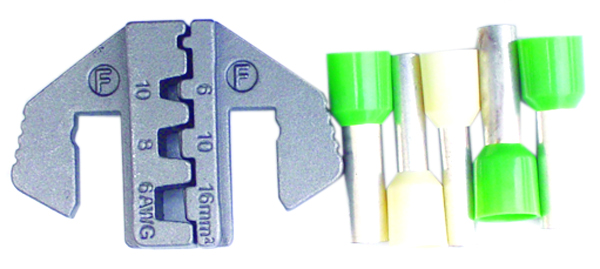

F DIE
Cord End Terminal
●AWG 10 / 8 / 6

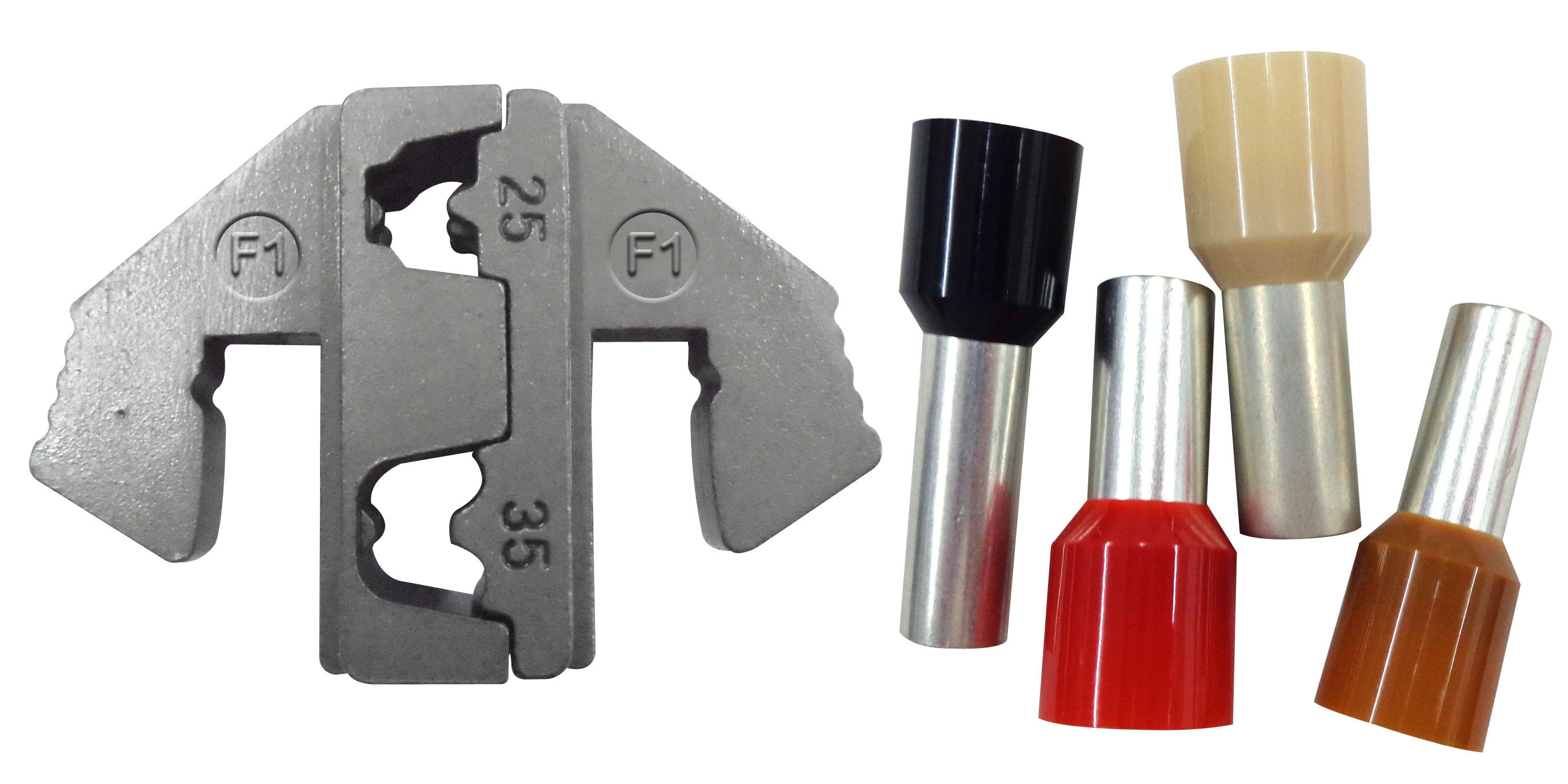

●DIN 6 / 10 / 16 mm2    F1 DIE
Cord End Terminal
●AWG 4 / 2
●DIN 25 / 35mm2

ADT-00051

Quick Change Ratchet Crimper For Cord End Terminal
