Industrial Shut-Off Air Screwdriver (Push Start)

モデル : SA-R-PUH Series

数量 :

説明
仕様

SA-R-PUH Series
Industrial Shut-Off Air Screwdriver
( Straight Type Push Start Reverse Button )

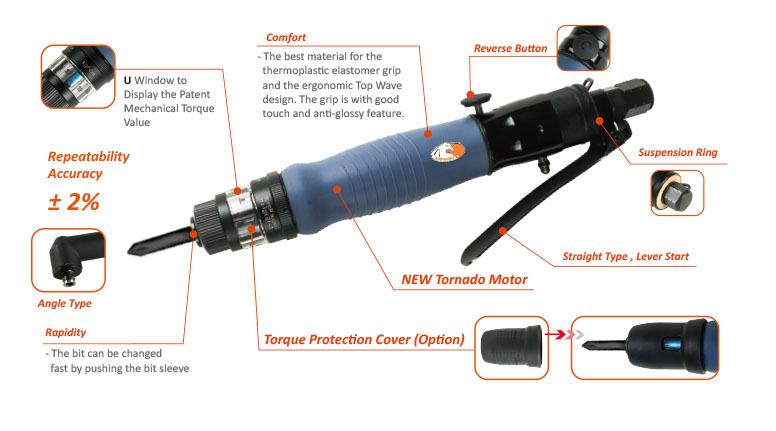

● New Cyclone Motor:
The patent motor is with 60% more torque power, 30~40% Less counterforce, 5~6dBA less noise level compare with the AIRPRO’s original version.

● Complete Torque Accuracy:
The ISO5393 B class CPK value torque deviation (CPK value > 1.33) is with low vibration (<2.5m/s2), torque repetitive accuracy +/-2%,
and wider torque range.

● New Reverse Button:
Only by pressing the reverse button, users can easily change to the reverse direction without lifting the tool away from work piece.

● U Window to Display the Patent Mechanical Torque Value:
The torque can easily to be read and adjusted.

SA-R-PUH Series
Industrial Shut-Off Air Screwdriver
( Straight Type Push Start Reverse Button )

Optional Accessories
SA-TC5A3535NM Hose ID.5mm (Nm unit)
SA-TC5A3536NM Hose ID.8mm (Nm unit)
SA-TC5A3533KG Hose ID.5mm (Kgf-cm unit)
SA-TC5A3534KG Hose ID.8mm (Kgf-cm unit)
Torque Protection Cover

Model No.	Torque Range		Free Speed	Mini Air Hose ID	Air Pressure	Air Cons.	Noise Level	Repeatability	Net Weight
	Torque Range		Free Speed	Mini Air Hose ID	Air Pressure	Air Cons.	Noise Level	Repeatability	Net Weight
	扭力		無負載轉速	氣管	氣壓	耗氣量	噪音值	%	重量
Push Start	Nm	Kgf-cm	R.P.M	mm	kg/cm²	L / S	±2dBA	P/L	kg (lb)
SA-R025PUH3200	0.5 - 2.5	5.1 - 25.5	3,200	5	6	6	74	± 2	0.50 (1.10)
SA-R030PUH2200	0.5 - 3.0	5.1 - 30.6	2,200	5	6	6	74	± 2	0.50 (1.10)
SA-R050PUH850	0.4 - 5.0	4.1 - 51.0	850	5	6	6	74	± 2	0.50 (1.10)
SA-R050PUH1400	0.7 - 5.0	7.1 - 51.0	1,400	5	6	6	74	± 2	0.50 (1.10)
SA-R070PUH500	1.1 - 7.0	11.2 - 71.4	500	5	6	6	74	± 2	0.50 (1.10)
SA-R110PUH320	1.0 - 10.0	10.2 - 102.0	320	5	6	6	74	± 2	0.60 (1.32)
SA-R095PUH2200	3.0 - 9.5	30.6 - 96.9	2,200	8	6	10	78	± 2	1.14 (2.51)
SA-R180PUH1000	3.0 - 18.0	30.6 - 183.6	1,000	8	6	10	78	± 2	1.17 (2.58)
SA-R280PUH550	5.0 - 28.0	51.0 - 285.6	550	8	6	10	78	± 2	1.18 (2.60)
