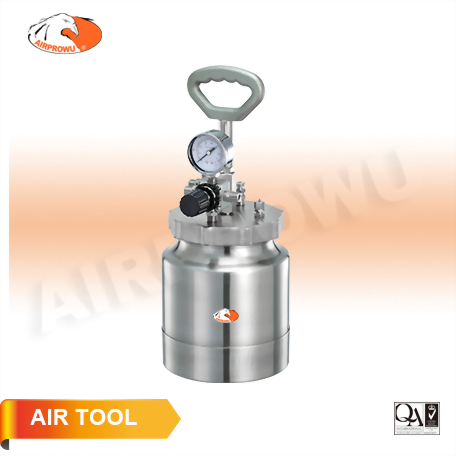

Economy 3.2 Liter Stainless Steel Pressure Pots
モデル :
AT-3HSS
AT-3HSS
Economy 3.2 Liter Stainless
Steel Pressure Pots
● Applied for: Waterborne / Glue / High-viscosity /Acid chemicals /
Alkaline chemicals / All common solvent / Based paints
● Certificates: ISO 9001: 2015
PED 2014/68 EU CE 2006/42 EC
ATEX 2014/34 EU EX II 2G cIIB T5 Gb
Economy 3.2 Liter Stainless
Steel Pressure Pots
● Applied for: Waterborne / Glue / High-viscosity /Acid chemicals /
Alkaline chemicals / All common solvent / Based paints
● Certificates: ISO 9001: 2015
PED 2014/68 EU CE 2006/42 EC
ATEX 2014/34 EU EX II 2G cIIB T5 Gb
AT-3HSS
Economy 3.2 Liter Stainless
Steel Pressure Pots
● Max.working pressure 3.5 Bar (50 psi)
● Fluid outlet 3/8"
● Air inlet 1/4"
● Lid & pot made by SUS 304 STAINLESS STEEL
● Lid & pot thickness (5 &1.2 mm )
● Lid outside & inside size (145 &132 mm)
● Bottom outside size 164.4 mm
● Bottle mouth inside size 120 mm
● Pot outside & inside height size(194 & 183 mm)
● Dimension: 165 x 195 x 390mm
● 3.1/3.8 KGS/0.9'
Economy 3.2 Liter Stainless
Steel Pressure Pots
● Max.working pressure 3.5 Bar (50 psi)
● Fluid outlet 3/8"
● Air inlet 1/4"
● Lid & pot made by SUS 304 STAINLESS STEEL
● Lid & pot thickness (5 &1.2 mm )
● Lid outside & inside size (145 &132 mm)
● Bottom outside size 164.4 mm
● Bottle mouth inside size 120 mm
● Pot outside & inside height size(194 & 183 mm)
● Dimension: 165 x 195 x 390mm
● 3.1/3.8 KGS/0.9'
