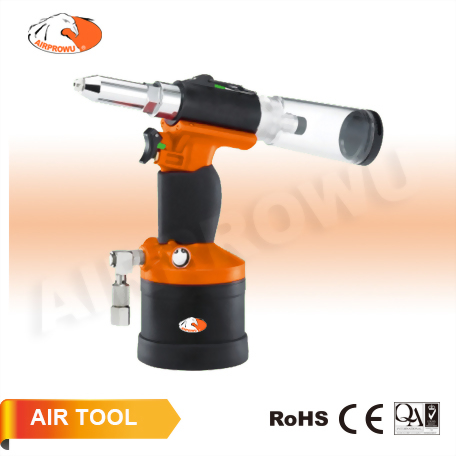

Composite Air Hydraulic Riveter w/ Vacuum Mandrel Collection System
モデル :
SA8846V
SA8846V 3/32"~3/16"
Composite Air Hydraulic Riveter
w/ Vacuum Mandrel Collection System
● Nosepiece: 3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm)
● Length of Placing Head: 290mm
● Base Diameter: 96.5mm
● Air Cons: 4CFM(113.2 l/min)
Composite Air Hydraulic Riveter
w/ Vacuum Mandrel Collection System
● Nosepiece: 3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm)
● Length of Placing Head: 290mm
● Base Diameter: 96.5mm
● Air Cons: 4CFM(113.2 l/min)
SA8846V 3/32"~3/16"
Composite Air Hydraulic Riveter
w/ Vacuum Mandrel Collection System
Composite Air Hydraulic Riveter
w/ Vacuum Mandrel Collection System
|
Model No. |
Rivet Capacity |
Traction |
Stroke |
Net |
Air Inlet |
Air Pressure |
|||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
進氣口 |
空氣壓力 |
||||||
|
Inch |
mm |
lb.f |
kg.f |
inch |
mm |
lb |
kg |
NPT(PT) |
psi |
bar |
|
|
SA8846V |
3/32",1/8", 5/32",3/16" |
2.4,3.2,4.0,4.8 |
2,000 |
908 |
0.59 |
15 |
3.31 |
1.5 |
1/4" |
85-95 |
6.0-6.7 |
