90° Air Angle Drill (0.6HP) Collect Type

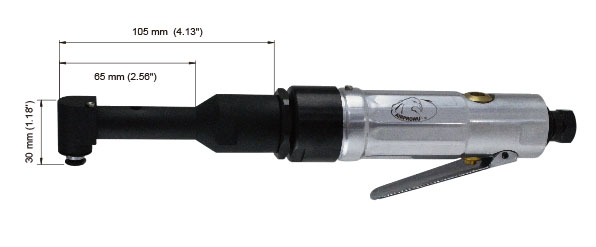

90° Air Angle Drill (0.6HP)
w/o Collet ; w/ Hex Wrench
SA6612L Aircraft Tool

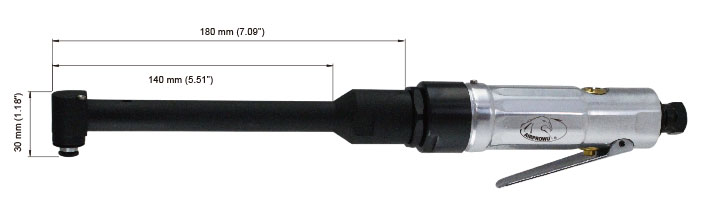

90° Extended Air Angle Drill (0.6HP)
w/o Collet ; w/ Hex Wrench
● Free Speed: 3,200 RPM
● Horse Power: 0.6 HP
Collet For Optional:
|
Item No. |
Collet Size |
|
mm |
|
|
AC-15M |
1.5 |
|
AC-20M |
2.0 |
|
AC-22M |
2.2 |
|
AC-24M |
2.4 |
|
AC-25M |
2.5 |
|
AC-30M |
3.0 |
|
AC-31M |
3.1 |
|
AC-32M |
3.2 |
|
AC-38M |
3.8 |
|
AC-40M |
4.0 |
|
AC-45M |
4.5 |
|
AC-46M |
4.6 |
|
AC-48M |
4.8 |
|
AC-50M |
5.0 |
|
AC-52M |
5.2 |
|
AC-58M |
5.8 |
|
AC-59M |
5.9 |
|
Item No. |
Collet Size |
|
Inch |
|
|
AC-332 |
3/32" |
|
AC-18 |
1/8" |
|
AC-532 |
5/32" |
|
AC-316 |
3/16" |

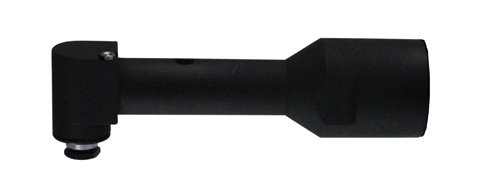

SA6606-R
90° Repl Head Of SA6606 & SA6612
● Spindle Thread: 9/32"-40

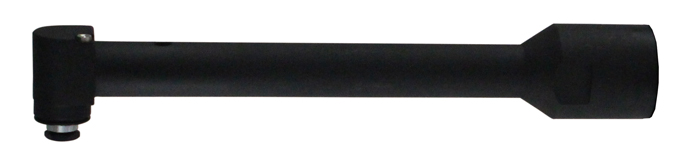

SA6606L-R
90° Repl Head Of SA6606L & SA6612L
● Spindle Thread: 9/32"-40
90° Air Angle Drill (0.6HP)
w/o Collet ; w/ Hex Wrench
SA6612L Aircraft Tool
90° Extended Air Angle Drill (0.6HP)
w/o Collet ; w/ Hex Wrench
|
Model No. |
Spindle |
Horse |
Free |
Net |
Overall |
Air |
Air |
Air |
Hose |
||||||
|
主軸螺紋 |
馬力 |
無負載轉速 |
重量 |
長度 |
進氣口 |
空氣壓力 |
耗氣量 |
氣管 |
|||||||
|
UNF |
HP |
W |
R.P.M |
lb |
kg |
Inch |
mm |
NPT(PT) |
psi |
bar |
CFM |
L/min |
Inch |
mm |
|
|
SA6612 |
9/32"-40 |
0.6 |
447 |
3,200 |
1.95 |
0.89 |
10.63 |
270 |
1/4" |
90 |
6.2 |
7.0 |
198 |
3/8 |
10 |
|
SA6612L |
9/32"-40 |
0.6 |
447 |
3,200 |
2.16 |
0.98 |
13.39 |
340 |
1/4" |
90 |
6.2 |
7.0 |
198 |
3/8 |
10 |
