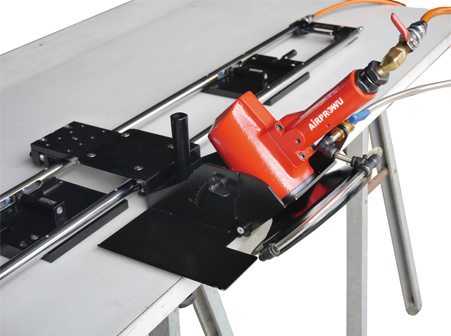

9" Wet Air Cutting Saw w/o Cutting Blade

モデル : SA85104-9K

数量 :

SA85104-9K
9" Wet Air Cutting Saw (4 pcs)
w/o Cutting Blade

● Max Speed : 9000 RPM
● Saw Blade Drill : Dia. 22.2 mm
● Noise Level: 88 dBA
● Cutting Depth for 45 & 90 Degree (max) : 40 mm
● Vibration : <2.5 m/sec2

SA85104-9K
9" Wet Air Cutting Saw (4 pcs)
w/o Cutting Blade

Contents
● 1PC SA85104-9 9" Wet Air Cutting Saw
● 1PC Linear Sliding Track with
Vacuum Suction Fixing
Base (1.2M) ACC-LTS120

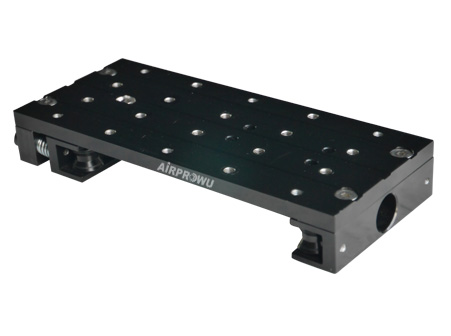

● 1PC Sliding Block ACC-SB238

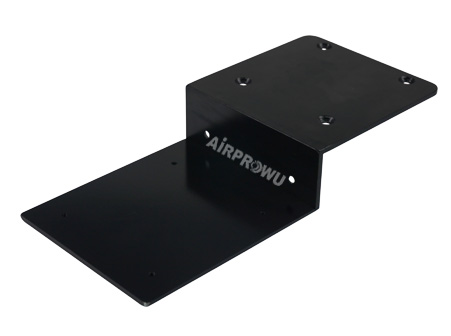

● 1PC Extension Fixed Plate
ACC-FP006
● Packing:
3pcs (SA85104-9, ACC-SB238, ACC-FP006) /CTN/ N.W 8.5kg/ G.W 10/ 1.36cuft
● Packing:
2pcs (ACC-LTS120) /CTN/ N.W 13.2kg/ G.W 14/ 1.97cuft

Model No.

Pad Size

Free
Speed

Net
Weight

Overall
Length

Air

Inlet

Air
Pressure

Air
Cons.

Hose
Size

底盤尺寸

無負載轉速

重量

長度

進氣口

空氣壓力

耗氣量

氣管

Inch

R.P.M

Inch

NPT(PT)

psi

bar

CFM

l/min

Inch

SA85104-9

228

9,000

14.11

6.40

13.78

350

1/4"

6.2

37.1

1050

1/2

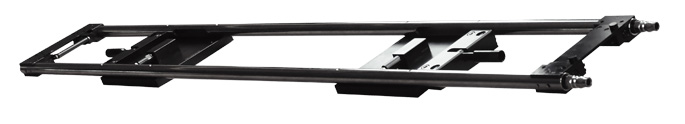

ACC-LTS120
Linear Sliding Track with Vacuum Suction Fixing Base (1.2M)

● Linear Motion Guide
● Length : 1235 mm (48.62")
● Width : 155 mm (6.1")
● Height : 40 mm (1.57")
● Net Weight : 5.9 kgs (13.01 lb)
● Air Cons. : 0.11 m3/min
● Air Inlet : 1/4"
● Hose Size (I.D.) : 6.5 mm
● Air Pressure : 6.3 kgf/cm2 (90 psi)
● Packing (1 Carton) : 3 pcs/2.1 cu-ft/G.W.:22 kgs
