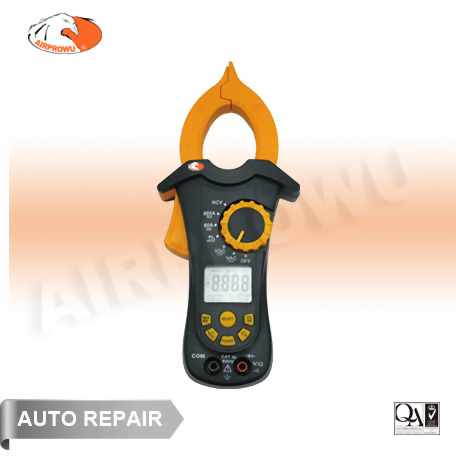

600A Digital Clamp Meter
600A Digital Clamp Meter
● Maximum Resolution: 3 6/ 7 (6000 counts)
● AC/DC Voltage Measurement
● AC Current Measurement
● Resistance Measurement
● Diode Measurement
● Continuity Measurement
● Non-contact Voltage Sensing
● Back-light and illumination
● Auto shot down
● Max/Min history value display
600A Digital Clamp Meter
● Power Supply: AAA 1.5V x 4 batteries (not included)
● Certificate: CE/GS
● DC Voltage Range: 0-600V DC
● AC Voltage Range: 0-600V AC
● AC Current Range: 0-600A
● Resistance Range: 0-60MΩ
|
AC Voltage:0-600VAC |
||
|
Range |
Resolution |
Accuracy |
|
600 mV |
0.1 mV |
±1.5% |
|
6V |
0.001V |
|
|
60V |
0.01V |
|
|
600V |
0.1V |
|
|
600mV |
0.1 mV |
|
|
AC Voltage:0-600VAC |
||
|
Range |
Resolution |
Accuracy |
|
600 mV |
0.1 mV |
±2% |
|
6V |
0.001V |
|
|
60V |
0.01V |
|
|
600V |
0.1V |
|
|
600mV |
0.1 mV |
|
|
AC Current:0~600A |
||
|
Range |
Resolution |
Accuracy |
|
60A |
0.01A |
±2.5%±8 digits |
|
600A |
0.1A |
±2.5%±5 digits |
|
Resistance:0-60MΩ |
||
|
Range |
Resolution |
Accuracy |
|
600Ω |
0.1Ω |
±1%±3 digits |
|
6Ω |
0.001kΩ |
±1%±3 digits |
|
60Ω |
0.01kΩ |
±1%±3 digits |
|
600kΩ |
0.1kΩ |
±1%±3 digits |
|
6MΩ |
0.001MΩ |
±2%±3 digits |
|
60MΩ |
0.01MΩ |
±2%±3 digits |
