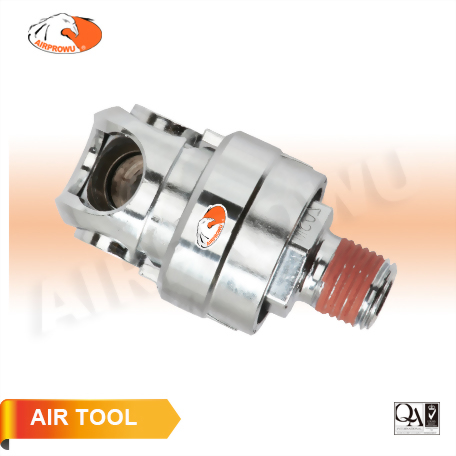

3/8" Male Foldable Fitting Quick Coupler (Nitto Type)
モデル :
FFN-30M
FFN-30M
3/8" Male Foldable Fitting Quick Coupler
(Nitto Type)
● Easy to operate and labor-saving with air connection.
● The body without air intake valve makes the air flow smooth and big.
● A built-in "lock mechanism" can prevents accidental disconnection.
● Remove the remain air on connection part before disconnection part before disconnection the plug.
● Low noise during plugging and unplugging.
● Material: Steel/ Zinc alloy
● Temp Range: -20~+80°C
● Thread: PT
3/8" Male Foldable Fitting Quick Coupler
(Nitto Type)
● Easy to operate and labor-saving with air connection.
● The body without air intake valve makes the air flow smooth and big.
● A built-in "lock mechanism" can prevents accidental disconnection.
● Remove the remain air on connection part before disconnection part before disconnection the plug.
● Low noise during plugging and unplugging.
● Material: Steel/ Zinc alloy
● Temp Range: -20~+80°C
● Thread: PT
FFN-30M
3/8" Male Foldable Fitting Quick Coupler
(Nitto Type)
● Packing: 120 pcs/CTN (N.W)14kg/ (G.W) 16.1kg /1.13' Cuft
3/8" Male Foldable Fitting Quick Coupler
(Nitto Type)
● Packing: 120 pcs/CTN (N.W)14kg/ (G.W) 16.1kg /1.13' Cuft
|
Iteml No. |
Discription |
Size |
Net |
Max. |
Work |
Material |
|
- |
Inch |
(g) |
psi (bar/ Mpa) |
psi (bar/ Mpa) |
||
|
FFN-30M |
Male |
3/8 |
117 |
290 (20/ 2) |
218 (15/ 1.5) |
Steel/ Zinc alloy |
FFN-30M
3/8" Male Foldable Fitting Quick Coupler
(Nitto Type)
● Pneumatic Tools, Air Piping, Air Pressure Equipment.
3/8" Male Foldable Fitting Quick Coupler
(Nitto Type)
● Pneumatic Tools, Air Piping, Air Pressure Equipment.
