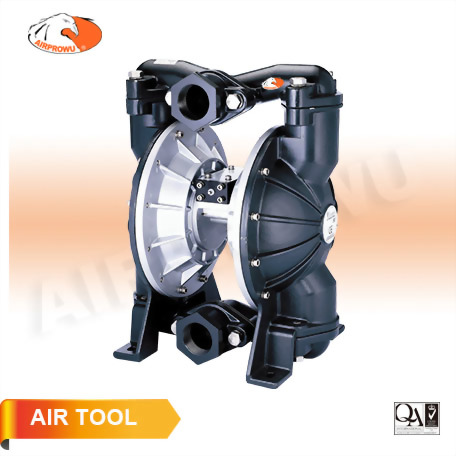

2" Double Diaphragm Pump (Aluminum Alloy Pump)
モデル :
VAP-A50O
VAP-A50O
2" Double Diaphragm Pump
(Aluminum Alloy Pump)
● Liquid Inlet & Outlet: 2" NPT
● Air Inlet & Outlet: 1/2" NPT
● Aluminum Alloy Pump
● Wetted & Center Body: Aluminum
● Pipe Type: Center
● Ball Cover: Thermoplastic Rubber
● Ball: Bakelite
● Ball Seat: Thermoplastic Rubber
● Dimension: (L)43 x (W)34 x (H)53 cm
● Max. Pressure: 8.3Bar(kgf/cm2); 29psi-79.75psi
● Working Pressure Advised: 2.0-5.5 Bar(kgf/cm2); 29-79.75 psi
● Quantity/ Cycle: 2.5L
● Air Cons.: 3600 L/min (127.08 SCFM)
● Solid Limit: Ø6.4-8.0mm
● Inlet Lift (Deep): 6 m-Wet / 3.7 m-Dry
● Max Flow Rate: 154.84 GPM (580 LPM)
● Weight: 29.5 kg
● Certificates: CE/ Ex II 2 GD c IIB T4-T5
