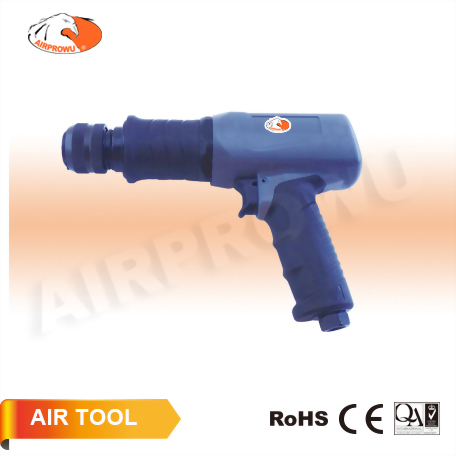

190mm Long Barrel Air Hammer
SA71110H1 Hex. Shank 10mm
SA71110H2 Hex. Shank 11mm
190mm Long Barrel Air Hammer
● Blow Per Minute: 3,500 B.P.M
● Vibration: 3.59 m/s2
● Beating Power: 850 Kgf
● Shank Opening: 0.41"
SA71110H1 Hex. Shank 10mm
SA71110H2 Hex. Shank 11mm
190mm Long Barrel Air Hammer
● Packing: 6pcs/ 14.9 kg/ 14.64 kg/ 1.21' Cuft
|
Model No. |
Blows Per |
Bore |
Piston |
Air |
Overall |
Net |
Air |
Hose Size |
|||||
|
打擊次數 |
活塞直徑 |
活塞行程 |
耗氣量 |
長度 |
重量 |
進氣口 |
氣管尺寸 |
||||||
|
B.P.M |
mm |
Inch |
mm |
CFM |
L/min |
Inch |
mm |
lb |
kg |
PT(NPT) |
Inch |
mm |
|
|
SA71110R(H1)(H2) |
3,500 |
19 |
2.28 |
58 |
14 |
400 |
9.5 |
242 |
4.85 |
2.2 |
1/4 |
3/8 |
10 |
SA71110H1 Hex. Shank 10mm
SA71110H2 Hex. Shank 11mm
190mm Long Barrel Air Hammer
● Extremely Low Vibrations Level & Ultra-high Beating Power
● Ergonomic grip
● Vibration Damping System + Active Air Spring = Significant Decrease in Hammer Vibration.
● 2 patents pending in US
● Quick-change retainer chuck
● Ultra-high beating power.
