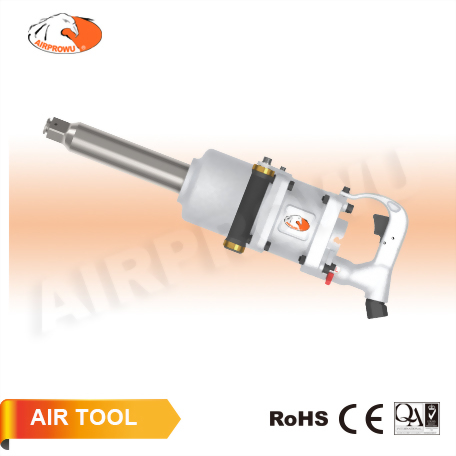

1" Heavy Duty Impact Wrench w/ 6" Anvil
モデル :
SA24141-6IS / SA24141-6OA / SA24141-6IA
SA24141-6IS 1" w/ Inside Trigger Straight Inlet
SA24141-6OA 1" w/ Outside Trigger 30º Angle Inlet
SA24141-6IA 1" w/ Inside Trigger 30º Angle Inlet
1" Heavy Duty Impact Wrench
w/ 6" Anvil

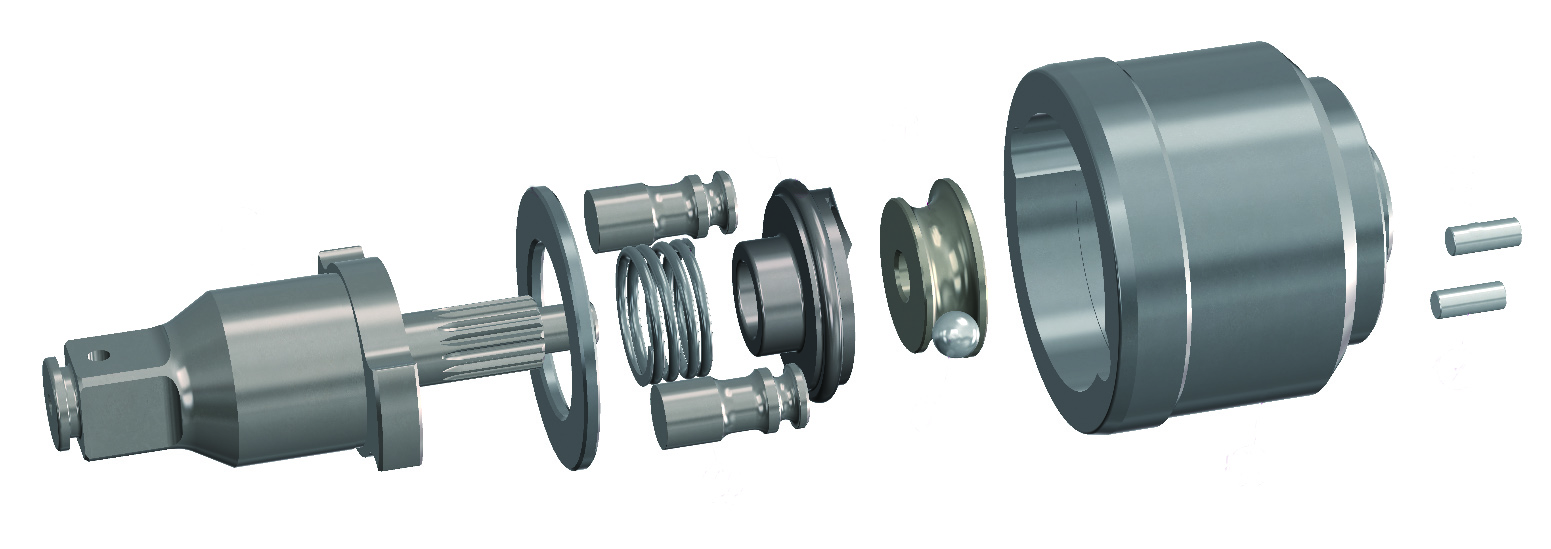

● Pantenting 4-pin Balanced Impact Mechanism
● Free Speed: 3,000 RPM
● Max. Torque: 3500 ft-lb(4746 Nm)
● Working Torque: 1476-3225 ft-lb (2000-4370 Nm)
SA24141-6OA 1" w/ Outside Trigger 30º Angle Inlet
SA24141-6IA 1" w/ Inside Trigger 30º Angle Inlet
1" Heavy Duty Impact Wrench
w/ 6" Anvil
● Pantenting 4-pin Balanced Impact Mechanism
● Free Speed: 3,000 RPM
● Max. Torque: 3500 ft-lb(4746 Nm)
● Working Torque: 1476-3225 ft-lb (2000-4370 Nm)
SA24141-6IS 1" w/ Inside Trigger Straight Inlet
SA24141-6OA 1" w/ Outside Trigger 30º Angle Inlet
SA24141-6IA 1" w/ Inside Trigger 30º Angle Inlet
1" Heavy Duty Impact Wrench
w/ 6" Anvil
SA24141-6OA 1" w/ Outside Trigger 30º Angle Inlet
SA24141-6IA 1" w/ Inside Trigger 30º Angle Inlet
1" Heavy Duty Impact Wrench
w/ 6" Anvil
|
Model No. |
Square |
Free |
Max Torque |
Air Cons |
Length |
Net |
Air |
||||
|
四方頭 |
無負載轉速 |
最大扭力 |
耗氣量 |
長度 |
重量 |
進氣口 |
|||||
|
Inch |
R.P.M |
ft-lb |
N-m |
CFM |
L/min |
Inch |
mm |
lb |
kg |
NPT(PT) |
|
|
SA24141-6IS |
1 |
3,000 |
3500 |
4746 |
15.9 |
450 |
23.0 |
580 |
24.03 |
10.9 |
1/2" |
|
SA24141-6OA |
|||||||||||
|
SA24141-6IA |
|||||||||||
