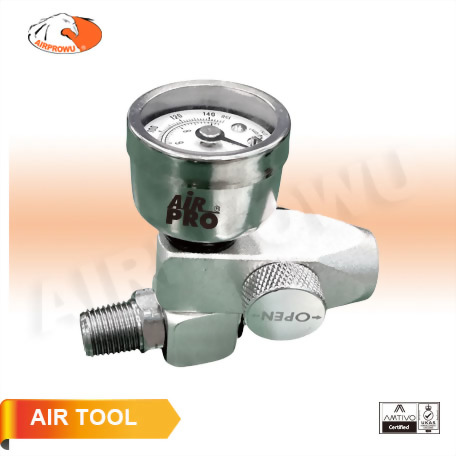

1/4" Swivel Joint Connector (European Type) w/ Regulator & Pressure Gauge
モデル :
ACC-134PG
ACC-134PG 1/4"
Swivel Joint Connector (European Type)
w/ Regulator & Pressure Gauge
● Max. inlet air pressure: 150 psi/10 Bar
● Air-Flow Avg.: 38 SCFM
● Air Inlet: 1/4-19 BPS
● Air Outlet: 1/4-19 PT
● Weight: 0.085 kg
● Length: (H) 43 x (W) 70mm
Pressure Gauge Specification
● Dial Size: Φ33 mm (1.2")
● Mounting Location: Back Entry
● Accuracy: FS ± 3/ 2/ 3%
● Pressure Range: 0~ 280 kg/cm2
● Bourdon Tube Material: Brass Alloy
● Connection Thread: 1/8PT, NPT, PF, BSP
● Dial Material: Aluminium
● Lens Material: PC or Glass.
Swivel Joint Connector (European Type)
w/ Regulator & Pressure Gauge
● Max. inlet air pressure: 150 psi/10 Bar
● Air-Flow Avg.: 38 SCFM
● Air Inlet: 1/4-19 BPS
● Air Outlet: 1/4-19 PT
● Weight: 0.085 kg
● Length: (H) 43 x (W) 70mm
Pressure Gauge Specification
● Dial Size: Φ33 mm (1.2")
● Mounting Location: Back Entry
● Accuracy: FS ± 3/ 2/ 3%
● Pressure Range: 0~ 280 kg/cm2
● Bourdon Tube Material: Brass Alloy
● Connection Thread: 1/8PT, NPT, PF, BSP
● Dial Material: Aluminium
● Lens Material: PC or Glass.
